Building Material Automatic Metal Ibr Roof/Roofing Iron Sheet Roofing Cold Roll Forming Making Machine

Name: Building Material Automatic Metal Ibr RoofRoofing Iron Sheet Roofing Cold Roll Forming Making Machine
Brand: METALIGN
Price: 1 USD

China Building Material Automatic Metal Ibr Roof/Roofing Iron Sheet Roofing Cold Roll Forming Making Machine wholesale

Brand Name : METALIGN

Model Number : IBR

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : USD1,000-700,000. Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Roofing Roll Forming Machine

Key words : IBR Panel Machine / Form Rolling Machine

Profile : Ibr ribs panel

Application : Residential Roof Drainage / Commercial Building Gutters

Material type : PPGI/PPGL/GI/GL Steel Coils

Material thickness : 0.3-0.8mm

Forming speed : 15-20m/min

Main motor power : 15Kw

Forming stations : 12

Driving system : Chain

Frame structure : Wall panel

Shaft diameter : 70mm

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Contact Now

Building Material Automatic Metal Ibr Roof/Roofing Iron Sheet Roofing Cold Roll Forming Making Machine

Overview

The IBR Roof Panel Roll Forming Machine is a specialized cold roll forming line designed to produce popular IBR metal roofing sheets widely used in industrial buildings, warehouses, and residential housing projects. Using galvanized or PPGI coils from 0.3-0.8mm thickness, the machine shapes coils into high-rib panels with excellent strength, water-shedding performance, and aesthetic appearance.

The production line features precision-machined rollers, a heavy-duty welded frame, and accurate forming stations to ensure consistent profile dimensions and long-term stability. With a user-friendly PLC touch-screen control system, operators can easily adjust length, batch quantities, and speed to achieve smooth output at 10-15m/min. Hydraulic cutting ensures clean edges without deformation.

Technical Parameters

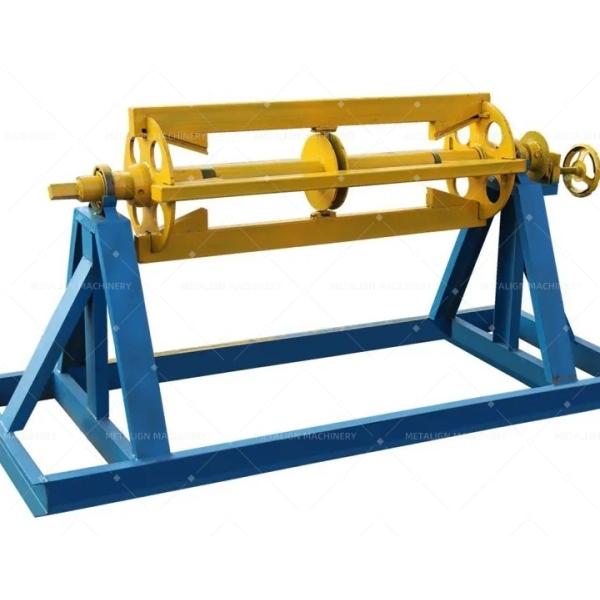

Decoiler

Structure	Double-support
Working Form	Manual, motorized, or hydraulic
Loading Capacity	5T/7T/10T, customizable
Coil Width	1250mm, customizable
Inner Diameter	Φ450 - Φ550 mm
Out Diameter	1500 mm
Model	DC-MU1

Optional Upgrade: Decoiler

Building Material Automatic Metal Ibr Roof/Roofing Iron Sheet Roofing Cold Roll Forming Making Machine

Guiding Device With Pre-Cut Broaching Shear

Guiding Roller	Adjust the coil feeding width
Pre-cut Broaching Shear	Cut the steel coil before roll forming
Digital Display	See the feeding width directly

Roll Forming Machine

Working Speed	Around 20 m/min
Structure	Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System	Chain system. Optional: Gearbox
No. of Forming Stations	18 stands
Shaft Diameter	70mm solid shaft
Motor Power	5.5 Kw
Roller Material	45# steel polished and chromed HRC58-62°
Shaft Material	High grade 45# steel polished(CNC lathe)
Steel Coil Material	PPGI or GI
Steel Coil Thickness	0.25-0.8mm

Optional Upgrade: Cover

Cutter

Common Power Type	Hydraulic. Optional: motor type.
Hydraulic Power	4-5.5Kw, customizable
Blade Material	Cr12 Mov
Hardness	With quenched treatment HRC 58 - 62°

Product Collection

Solution 1	Run-out table	Solution 2	Auto stacker
Power Type	Non-powered, mainly manual handling	Power Type	Motorized, 3Kw
Dimension	Length 4m, customizable	Dimension	Length 4m-6m, customizable

PLC Control Cabinet

PLC Brand	Delta, customizable	Power Supply	380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand	Omron, customizable	Language	Chinese + English, Spanish, French, Russian, etc
Touch Screen	MCGS, customizable	Operation type	Manual /auto two-type switch

Hydraulic Power Unit (HPU)

Motor Power	5.5Kw
Oil Required	N32 or N46 hydraulic oil is available
Design	The hydraulic station has a fan cooling system
Optional	It can be installed on or inside the roll former to save space

Analysis

Decoiler: Unwinds metal coil, supports large rolls, ensures smooth feed
Guide: Aligns material for precise forming, reduces waste
Roll forming machine: Chain-driven, wall panel structure, forms multi-arc K-style gutters
Hydraulic cutter: Accurate length cutting, stable hydraulic system, reduces manual work
Out table: Collects finished gutters, supports stacking, minimizes damage

Production Line Components

Component	Quantity
Hydraulic Decoiler	1 set
Roll Former	1 set
Hydraulic Cutter	1 set
Out Table	2 sets
PLC Cabinet	1 set
Hydraulic Station	1 set

Customization Options

This production line can be customized with adjustable roll forming stations for varied arc depths, hydraulic cutter lengths, and material thickness. Optional features include PLC-controlled speed adjustment, chain drive reinforcement, and compatibility with aluminum or galvanized steel. Customers can tailor output to match specific roof profiles or design requirements.
